Micro Switches

Sunshine Series 30 Micro Switch is a heavy duty switch with an strong extra life spring machines(Have successfully been tested up to 14 million cycles). High reliability is designed into the switch which can be used in a wide variety of application such as Industrial Equipments, Bussiness Machines, Home Appliances etc.

MATERIALS & FINISHES

BODY & COVER

PBT 30GF (UL APPROVED)

PLUNGER

Acetal / PA

CONTACTS

Silver Alloy

TERMINALS

Brass (Silver or Tin plated)

ROCKER

Brass Silver plated

SPRING

Beryllium Copper

(If not specified, the COMMON Terminal will be Silver Plated and the NO & NC Terminals will be Tin Plated)

CONTACT RESISTANCE

< 50 mW Initial

INSULATION RESISTANCE

100 MW (at 500 VDC)

DIELECTRIC STRENGTH

1000 VAC (1 min)

OPERATING TEMP

-25°C to +80°C

SPECIFICATIONS

Electrical Rating

  • 10A, 5A, 3A-250V AC with 600gms, 400gms, 200gms, 100gms, 50gms, actuating force with Plunger Color Black, Yellow resp.
  • If not specified, Standard Operating Force will be 300 gmf.

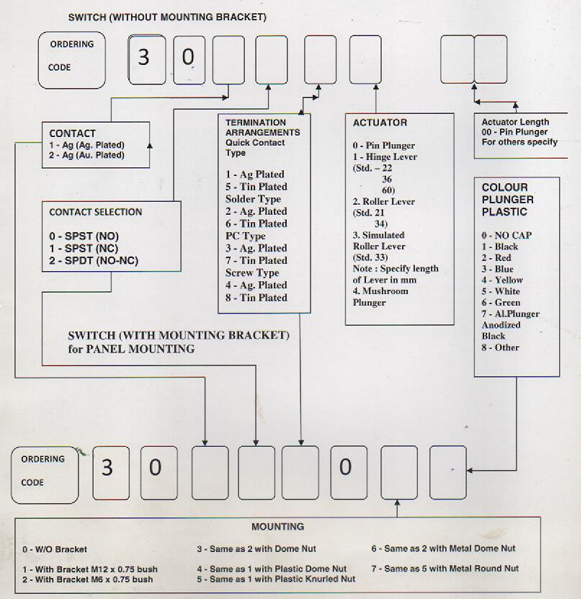

How To Order

  1. For standard switches by describing as given below
  2. For Special switches please consult factory with Samples/Drawings
