Rotary Switches

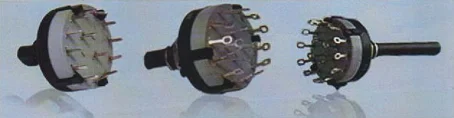

Sunshine Series 92 is a miniature rotary switch of 25 mm diameter, offering premium quality at an economical price. The design of the switch is limited to a single section with solder/PC terminals. These are totally enclosed switches offering the most popular combination as encountered in modern electronic circuits. Uniform, positive indexing is provided by 2 balls housed in an engineering plastic case.

SPECIFICATIONS

CONTACT RATING

2.5 A @ 125 V AC or 28 V DC
150 mA @ 230 V AC or DC

CONTINUOUS CURRENT

5 A

LIFE

More than 20,000 cycles on full load

CONTACT RESISTANCE

< 20 milli ohms measured at 2–6V DC / 100 mA initial

INSULATION RESISTANCE

1000 Meg ohms

VOLTAGE PROOF

Minimum 1000 V AC

OPERATING TEMP

-30°C to +70°C

INDEXING ANGLE

30°

MATERIAL FINISHES

BODY, ROTOR AND BASE

Glass filled nylon

CONTACTS

Copper alloy or coin silver, Silver plate or gold plate(see contact Selection)

HARDWARE

Brass/ Steel Zinc Plate

FEATURES

  • Miniature single section switches
  • Contacts totally enclosed for environmental protection
  • Choice of contact materials
  • Stoppers can be adjusted at site
  • Can be directly mounted on PC

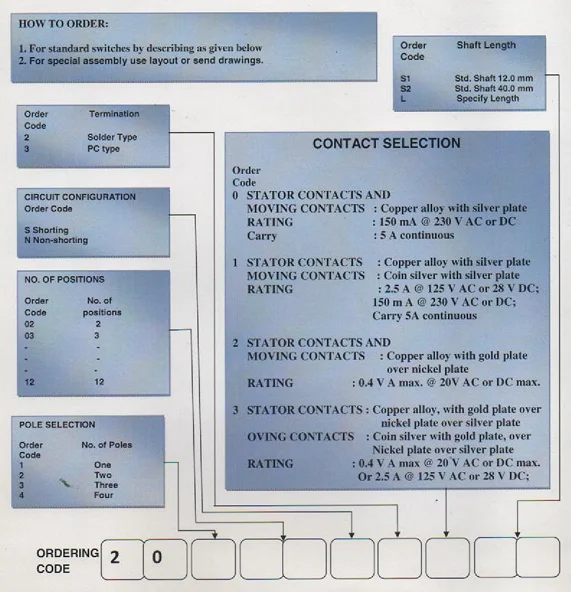

How To Order

  1. For standard switches by describing as given below
  2. For Special assembly use layout or send drawings
